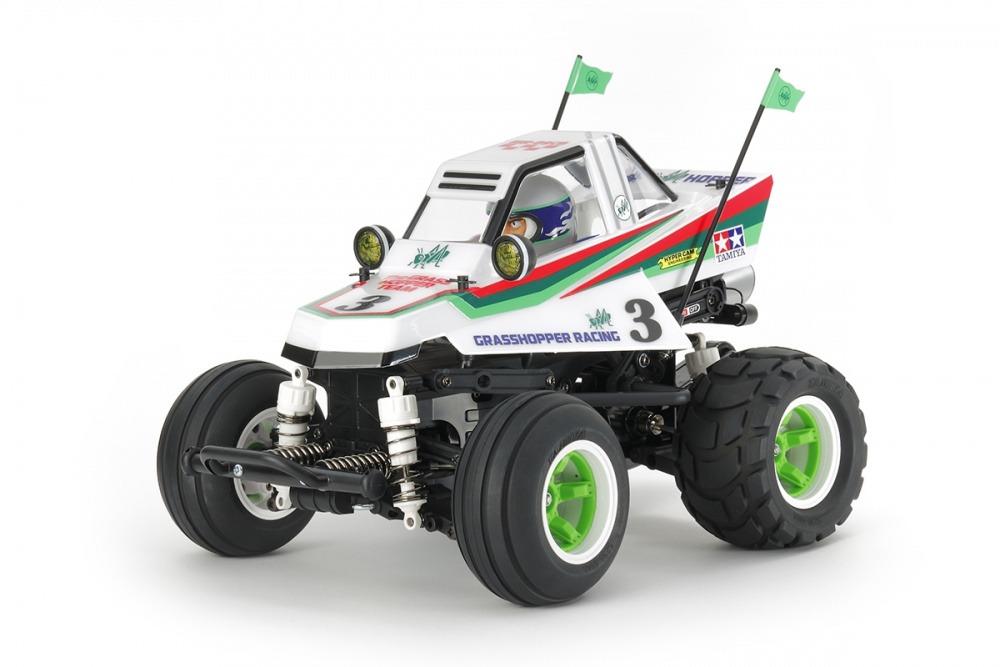

• 1/10 scale R/C model assembly kit.
• Superb performance both on- and off-road.
• Durable monocoque centerpiece and inline battery pack position, 4-wheel double wishbone suspension and 2-piece steering tie-rod set up.
• Polycarbonate body.
• Sticker design based on the original Grasshopper.
• Suspension arms feature multiple damper attachment holes for easily adjustable performance.
• New 2-piece wheels molded in durable ABS.
• New tire design, with rib pattern front and block pattern rear.
• Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)

FEATURES
Chassis: WR-02CB plastic monocoque with wheelie bar
Drive: Rear wheel
Differential: Gear type
Motor: 540 brushed
Electronic Speed Control: Tamiya TBLE-02S operates sensored
brushless motors and brushed motors (21.5 turn brushless motor
limit, 23 turn brushed motor limit)
Body: Clear molded polycarbonate with headlight cases that allow the
installation of 5mm LEDs (LED lights not included and must be
purchased separately)
Shocks: Oil-filled mini CVA with white plastic bodies
Suspension: 4-wheel double wishbone, suspension arms feature
multiple shock attachment holes
Steering: Two-piece tie rod
Wheels: Two-piece ABS plastic, green in color
Tires: Rib pattern front, block pattern rear
Front Bumper: Spring loaded plastic
INCLUDES
Tamiya 1/10 scale Electric Powered Comical Grasshopper with 540
size brushed Motor, ESC, Tires, 2-pc Wheels, Body, 18 tooth Pinion
Gear, Driver Figure and Instruction Manual

REQUIREMENTS
Radio: 2-channel with steering servo
Battery: 7.2V round pack, square shaped batteries will not fit
battery compartment
Battery Charger: For selected battery pack

Polycarbonate safe spray or brush-on paint
Track and maintenance equipment

SPECIFICATIONS
Length: 14" (356mm)
Width: 9.6" (244mm)
Wheelbase: 6.7" (170mm)
